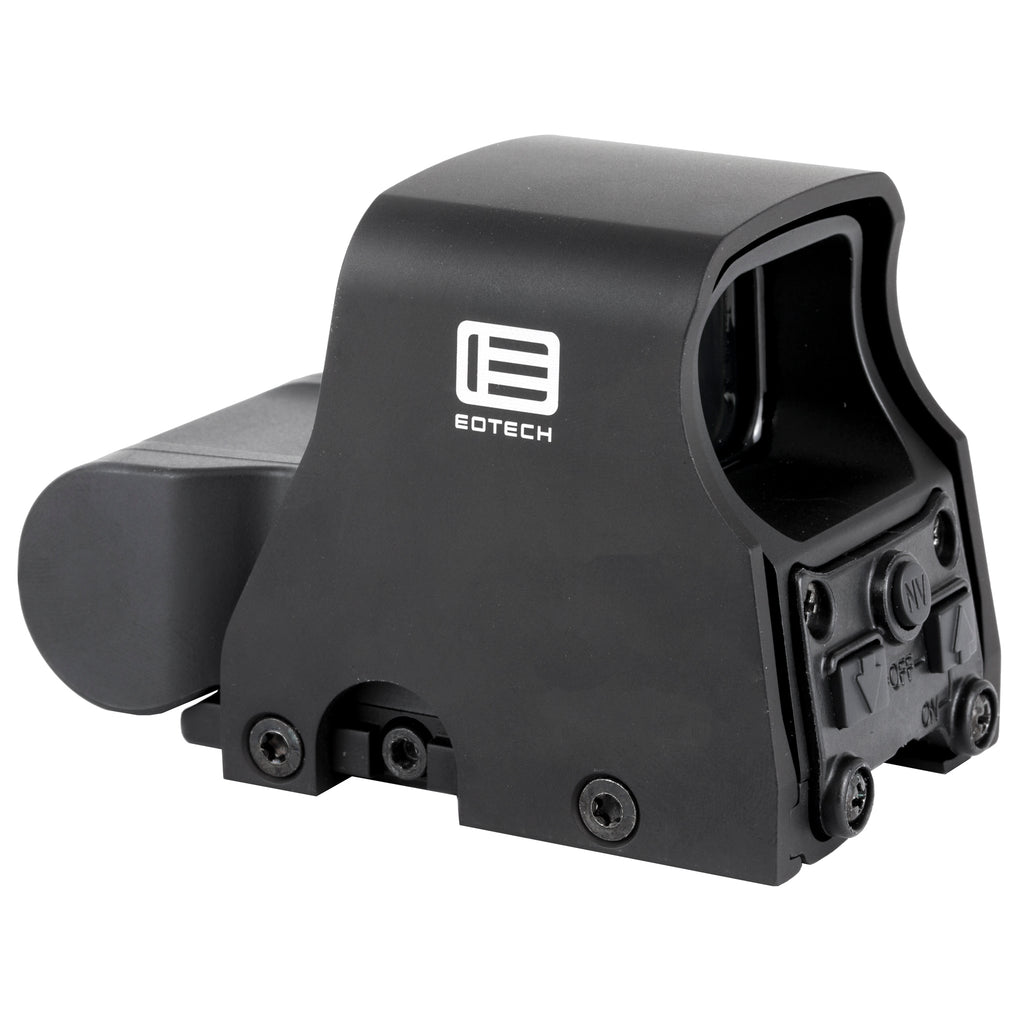

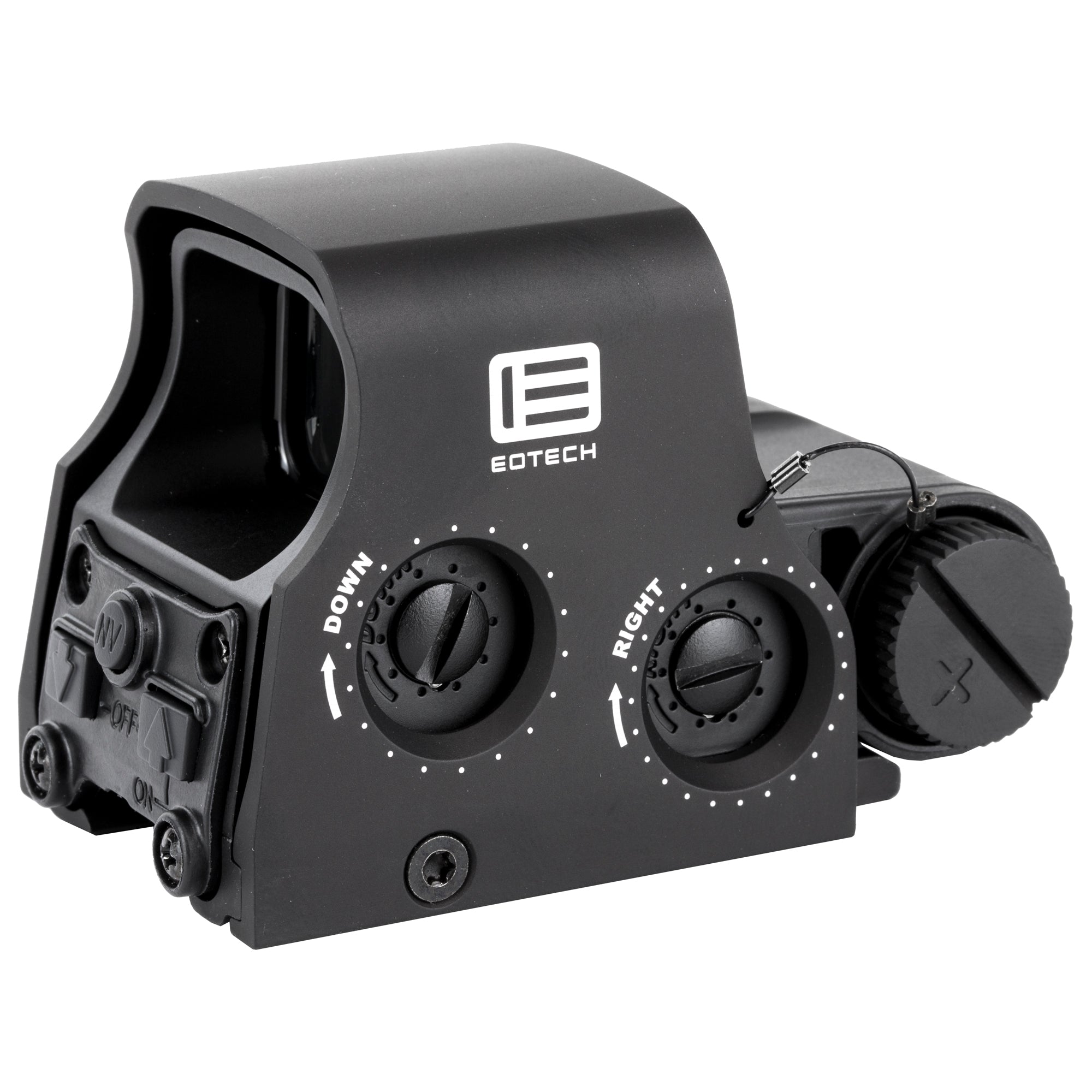

EOTECH XPS3 Holographic Sight, Red 68 MOA Ring With (2)-1 MOA Dots Reticle

EOTECH XPS3 Holographic Sight, Red 68 MOA Ring With (2)-1 MOA Dots Reticle — Compact 1x Holographic Weapon Sight for Duty and Field Use

• Reticle: 68 MOA ring + (2) 1 MOA dots

• Battery: 1× CR123A lithium

• Battery Life: ~1,000 hours at nominal setting

• Weight: 9.0 oz / 255 g

• Dimensions: 3.8″ × 2.1″ × 2.5″

• Water Resistant: Submersible to 33 ft / 10 m

• Mount: 1″ Weaver / MIL-STD-1913 rail

• Brightness Settings: 20 daylight + 10 NV modes

The EOTECH XPS3-2 delivers the proven speed and clarity of holographic aiming in a compact form factor. Designed for law enforcement, hunters, and tactical professionals, it provides rapid target acquisition without sacrificing rail space or reliability.

Built for Rapid Target Acquisition

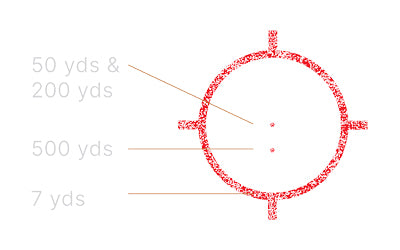

• Dual-Dot Reticle — 68 MOA ring with two 1 MOA dots for quick visual lock and precise follow-up shots.

• Compact Footprint — Single transverse CR123A battery frees rail space for magnifiers, BUIS, or NV gear.

• Night Vision Ready — Ten NV brightness settings compatible with Gen I–III+ image intensifiers.

• Rugged and Reliable — Submersible to 33 ft (10 m), fog-resistant optics, and durable protective housing.

• User-Focused Controls — Rear-facing recessed buttons for fast brightness and mode adjustments under stress.

• Long Run Time — Approx. 1,000 hours continuous use on setting 12 at room temperature.

Specifications

• Model: XPS3-2

• Reticle: 68 MOA ring + two 1 MOA aiming dots

• Controls: Rear push buttons

• Finish: Non-reflective black

• Power Source: 1 × CR123A lithium battery

• Battery Life: ~1,000 hours (nominal setting 12)

• Dimensions (L × W × H): 3.8″ × 2.1″ × 2.5″ (96.5 × 53.3 × 63.5 mm)

• Weight: 9.0 oz / 255 g

• Window Size: 1.20″ × 0.85″ (30 × 23 mm)

• Mount: 1″ Weaver / MIL-STD-1913

• Water Resistance: Submersible to 33 ft / 10 m

• Adjustment Click Value: 0.5 MOA per click

• Adjustment Range: ±40 MOA

• Operating Temp: –40 °F to 140 °F (–40 °C to 60 °C)

• Brightness Settings: 20 daylight + 10 NV

FAQ

Q: How should the XPS3-2 be mounted?
A: Use the included thumb screw or hex bolt. Torque to 17 in-lb (0.2 kg·m) for secure fit.

Q: Does the reticle fade as the battery drains?
A: No. Brightness stays stable until the battery is low, then the reticle blinks before shutoff.

Q: Is it compatible with magnifiers or backup irons?
A: Yes. The compact design leaves rail space for magnifiers and co-witness with BUIS.

Compact, durable, and NV-ready, the XPS3-2 is trusted worldwide where speed and precision matter most.
