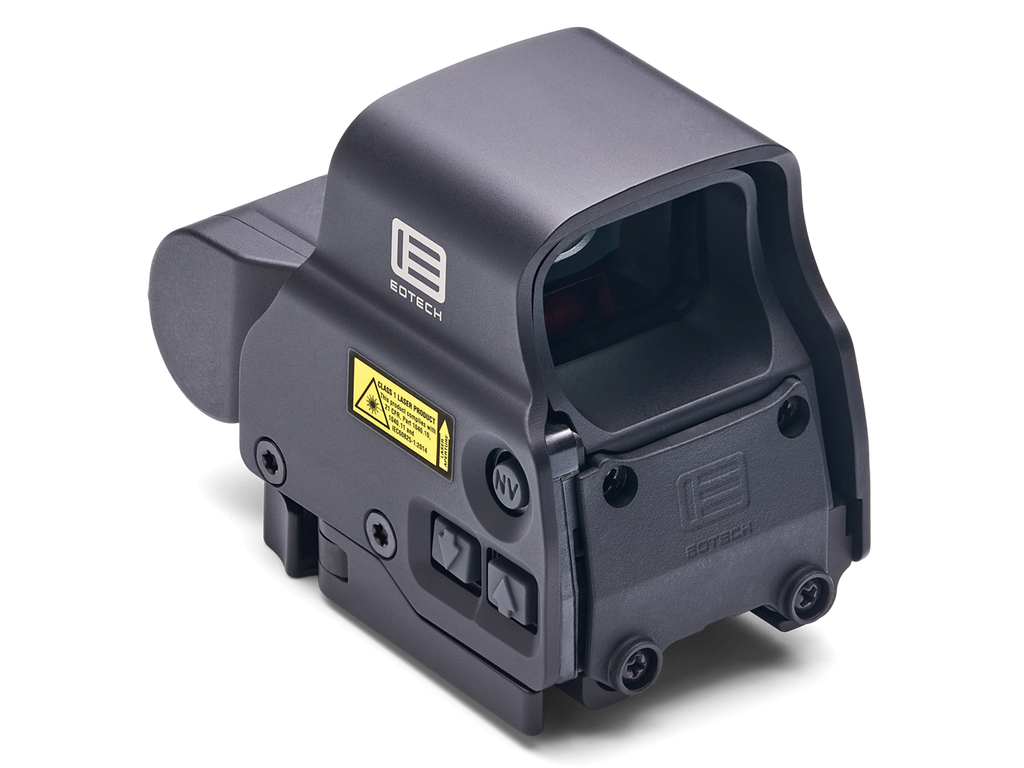

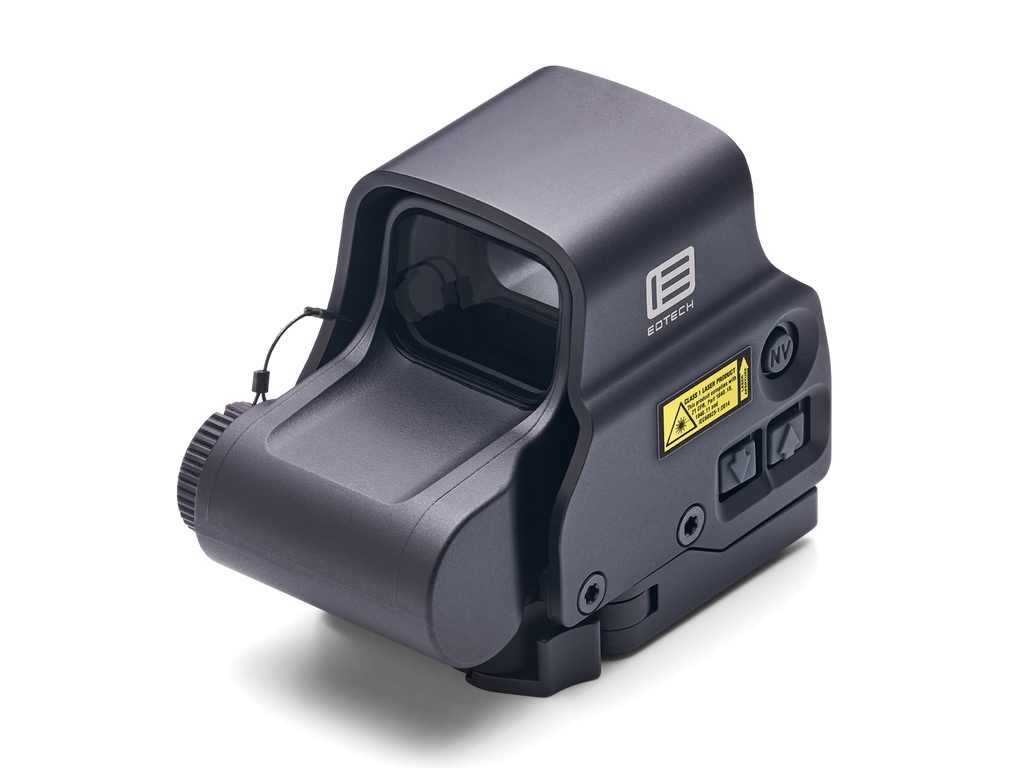

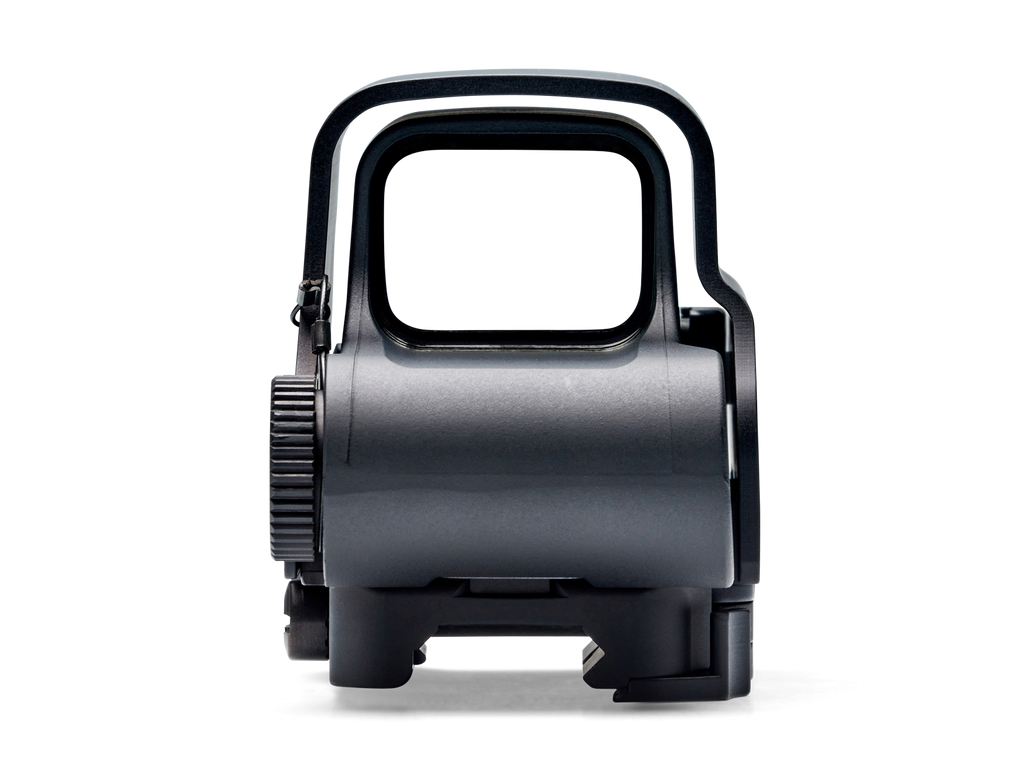

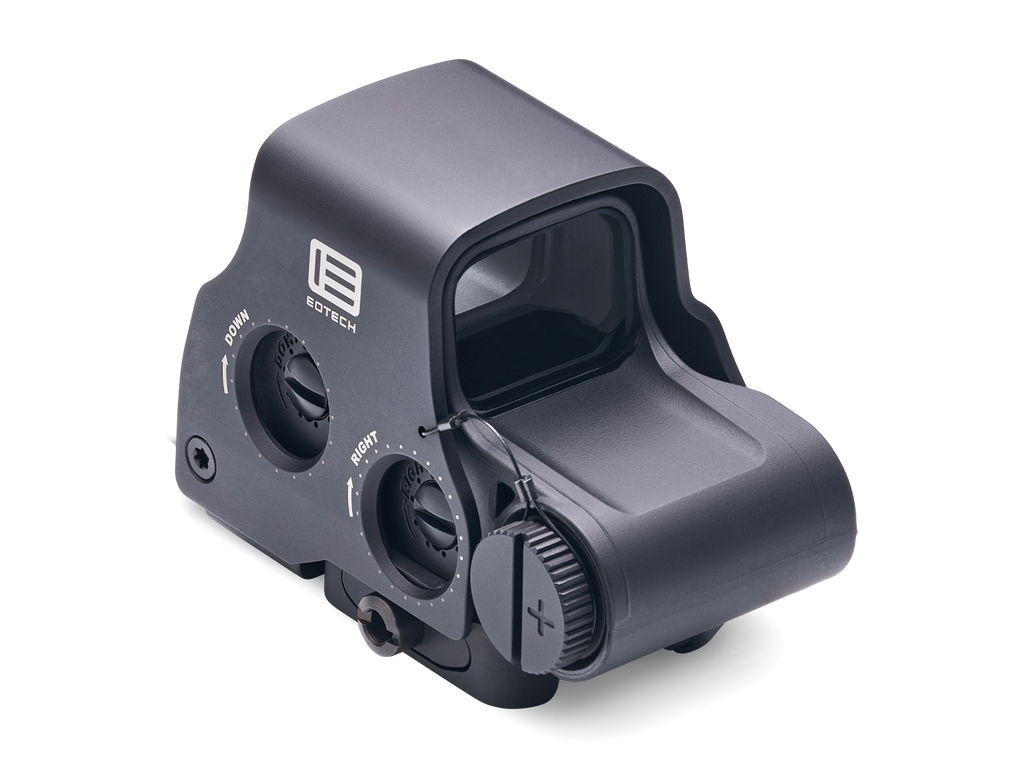

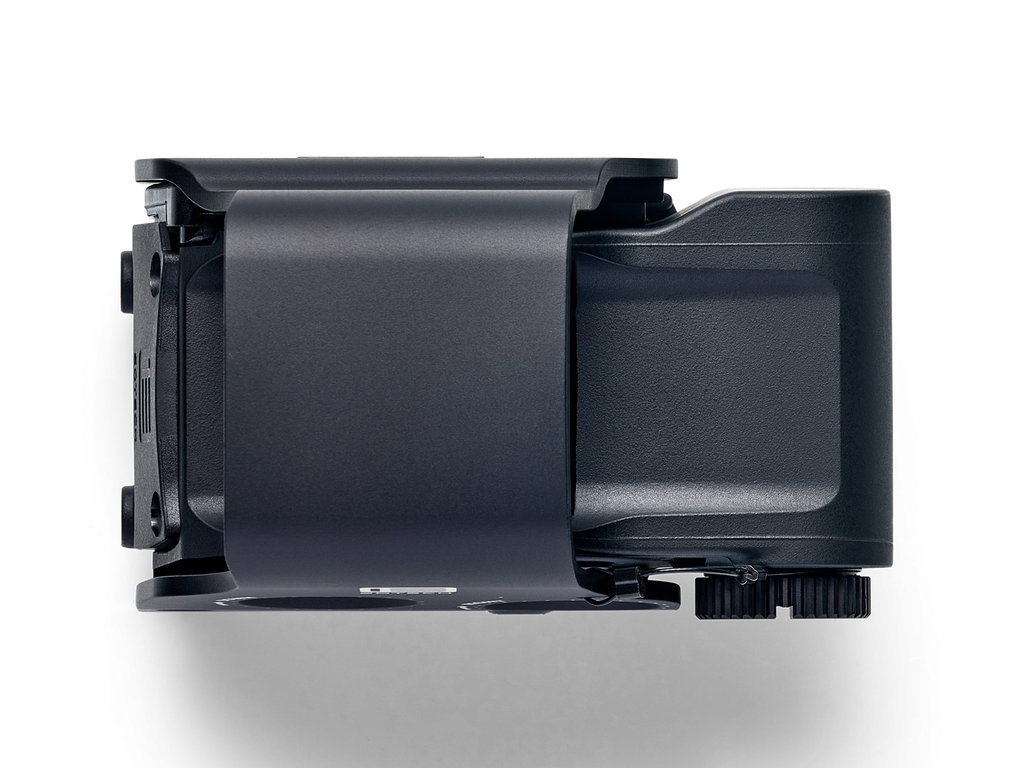

EOTECH EXPS3-4 Holographic Sight, Red 68 MOA Ring with (4) 1 MOA Dots

EOTECH EXPS3-4 Holographic Sight, Red 68 MOA Ring with (4) 1 MOA Dots — Compact, NV-Compatible HWS with QD Mount

• Reticle: 68 MOA ring + (4) 1 MOA dots

• Battery: 1 × CR123A lithium (included)

• Battery Life: ~1,000 hours at setting 12 (room temp)

• Weight: 11.2 oz / 317 g

• Dimensions: 3.8″ × 2.3″ × 2.9″

• Water Resistance: Submersible to 33 ft / 10 m

• Mount: Quick-detach lever, 1″ Weaver / MIL-STD-1913 rail

• Brightness Settings: 20 daylight + 10 NV

The EOTECH EXPS3-4 delivers true two-eyes-open shooting with a unique reticle featuring four 1 MOA dots inside a 68 MOA ring. Its raised 7 mm quick-detach base provides lower 1/3 co-witness with iron sights, while compact side-button controls allow easy use with magnifiers. NV compatibility ensures performance across both day and night operations, making it a versatile choice for duty use or modern hunting setups.

Built for Advanced Targeting

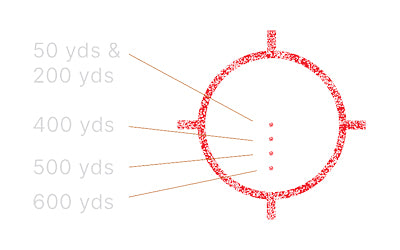

• Four-Dot Reticle — 68 MOA ring with four aiming points for calibrated holdovers or multiple zero ranges.

• Raised Base Design — 7 mm riser enables lower 1/3 co-witness with backup irons.

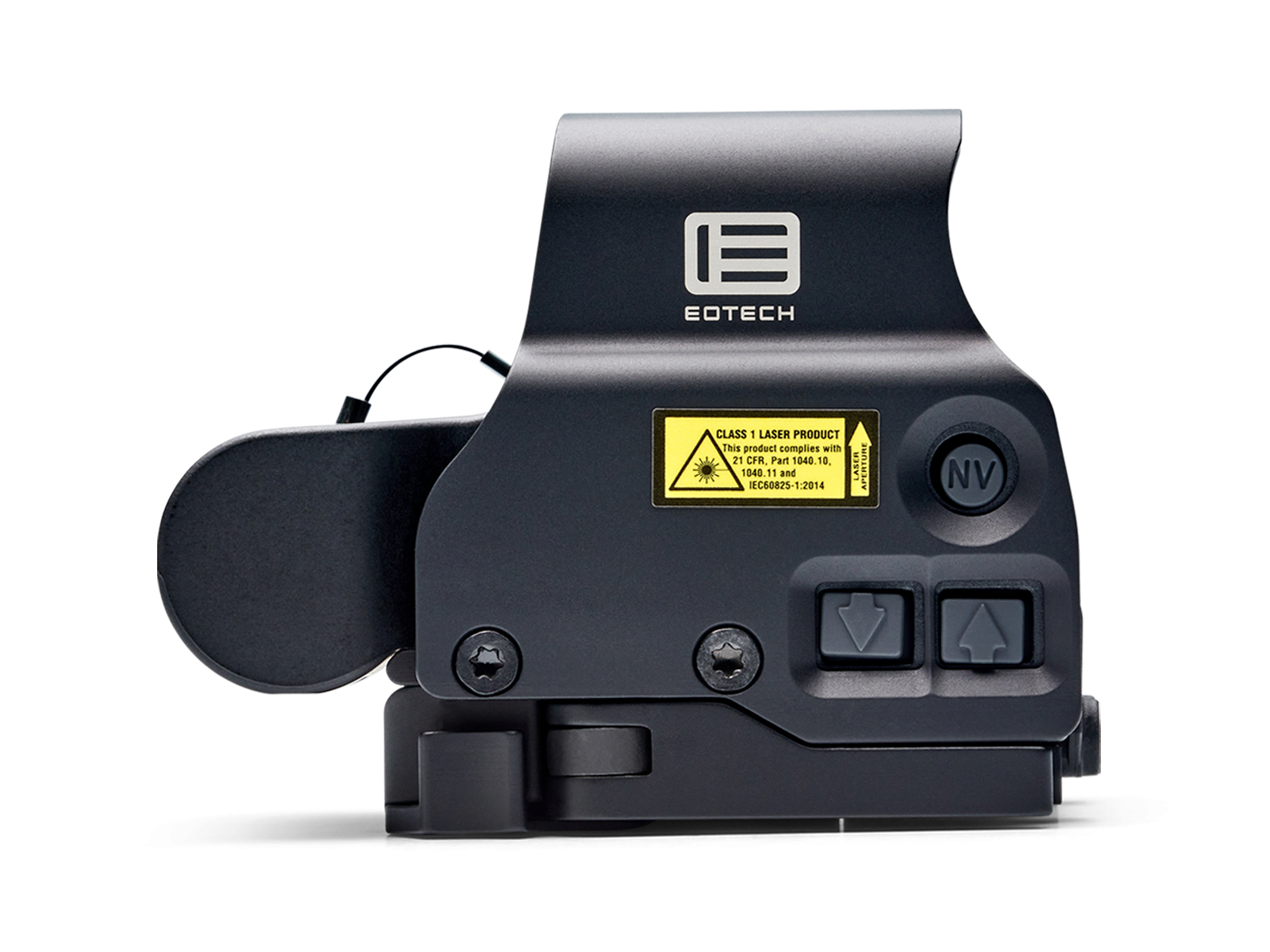

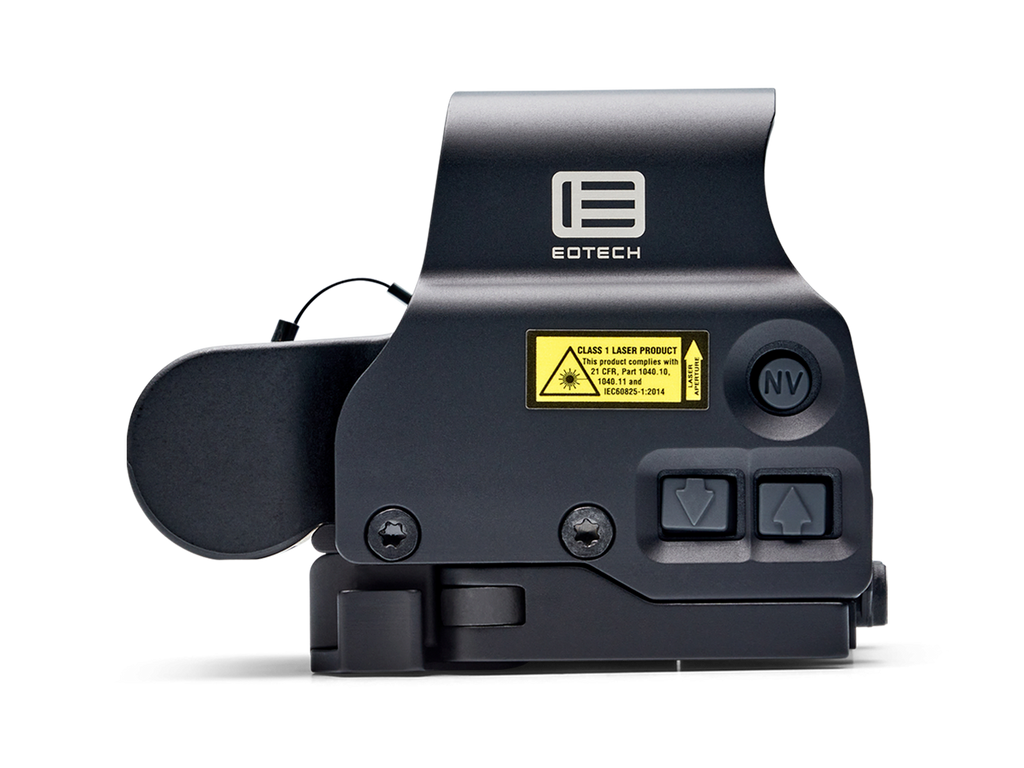

• Side-Button Controls — Optimized for magnifier pairing and fast brightness adjustments.

• Quick-Detach Mount — Locking QD lever ensures repeatable zero and secure rail fit.

• Night Vision Ready — Includes 10 dedicated NV brightness settings for Gen I–III+ devices.

• Rugged Housing — Submersible to 33 ft with fog-resistant internals and tested durability.

Specifications

• Model: EXPS3-4

• Reticle: 68 MOA ring with four 1 MOA dots

• Controls: Side push buttons

• Finish: Black, non-reflective

• Power Source: 1 × CR123A lithium battery (included)

• Battery Life: ~1,000 hours continuous at nominal setting 12

• Dimensions (L×W×H): 3.8″ × 2.3″ × 2.9″ (96.5 × 58.4 × 73.7 mm)

• Weight: 11.2 oz (317.5 g)

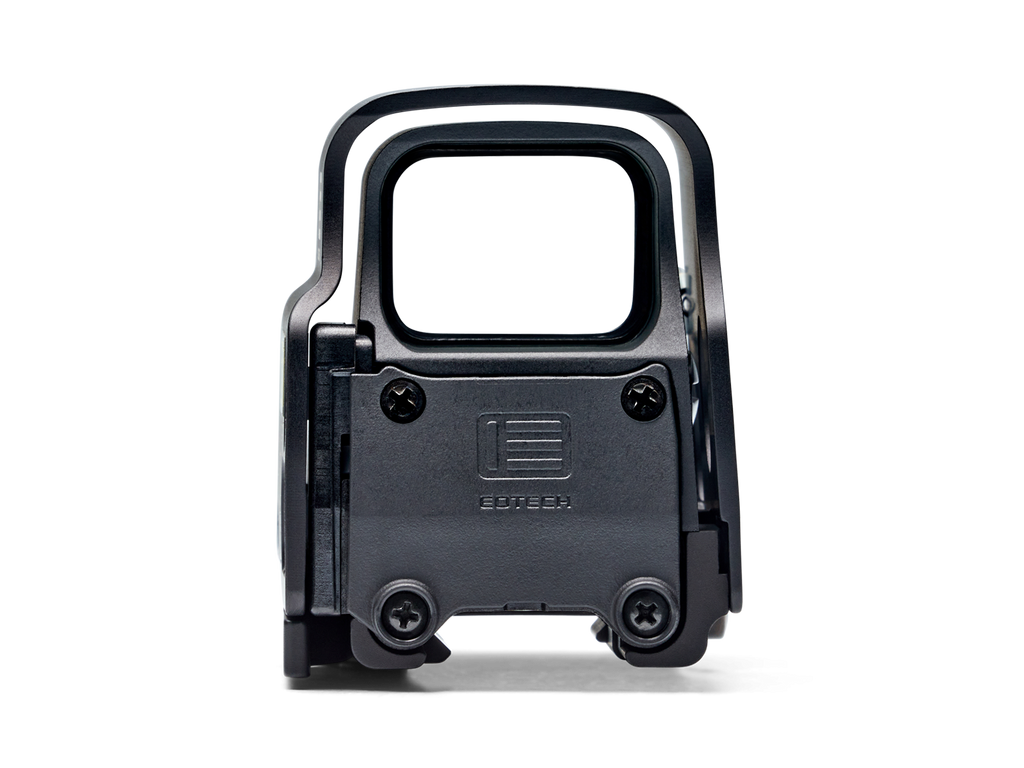

• Window Size: 1.20″ × 0.85″ (30 × 23 mm)

• Mount: Locking QD lever, 1″ Weaver / MIL-STD-1913 rail, 7 mm riser

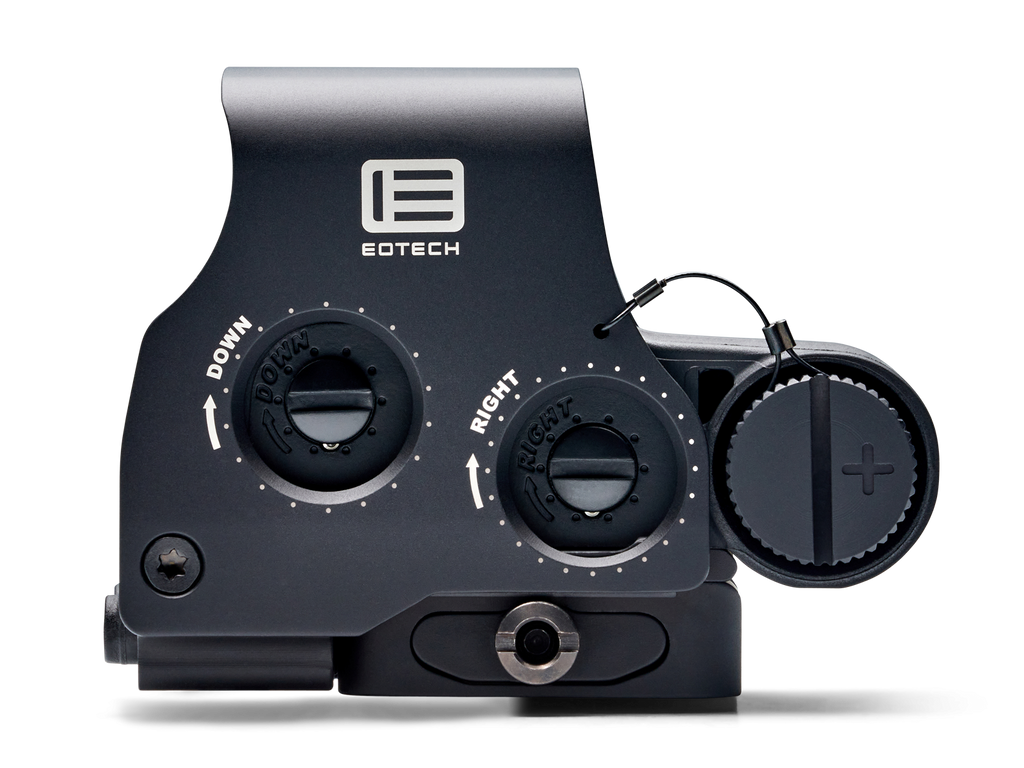

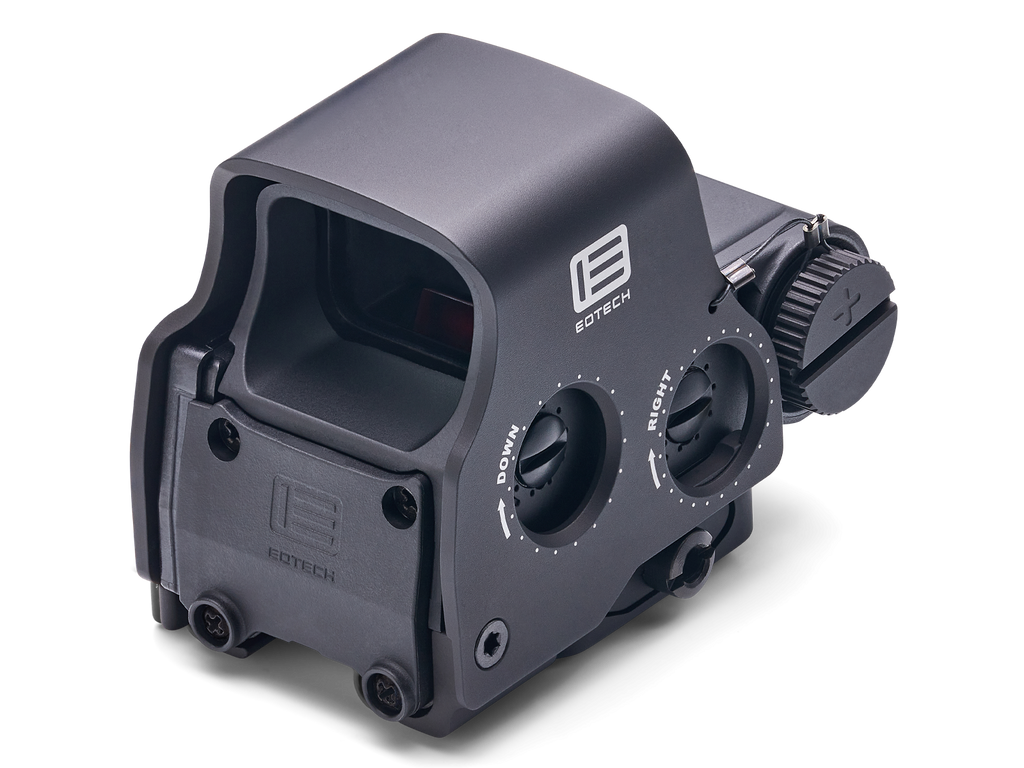

• Adjustment Value: 0.5 MOA per click

• Adjustment Range: ±40 MOA

• Water Resistance: Submersible to 33 ft (10 m)

• Operating Temp: –40 °F to 140 °F (–40 °C to 60 °C)

• Brightness Settings: 20 daylight + 10 NV

• Country of Origin: Made in USA

Package Contents

• EXPS3-4 HWS

• Quick-start guide

• Warranty card

• CR123A battery

• Protective case

FAQ

Q: What’s the benefit of the four-dot reticle?
A: It provides calibrated holdovers for multiple distances, allowing rapid transitions without adjusting optics.

Q: Can this optic be used with magnifiers?
A: Yes. The side-button layout is designed for magnifier pairing without interference.

Q: Does the mount allow co-witness with irons?
A: Yes. The 7 mm riser provides a lower 1/3 co-witness with standard backup sights.

Compact, precise, and night-vision compatible, the EXPS3-4 offers advanced multi-range aiming in a rugged holographic package.
